Keesino

Aristocrat Gen7 Viridian WS/Upright /Slant/Hybird 22"

$958.40

Model: KT-LA221X-A9
Keesion Model: GM220 1 02

Mechanical:

Mechanical

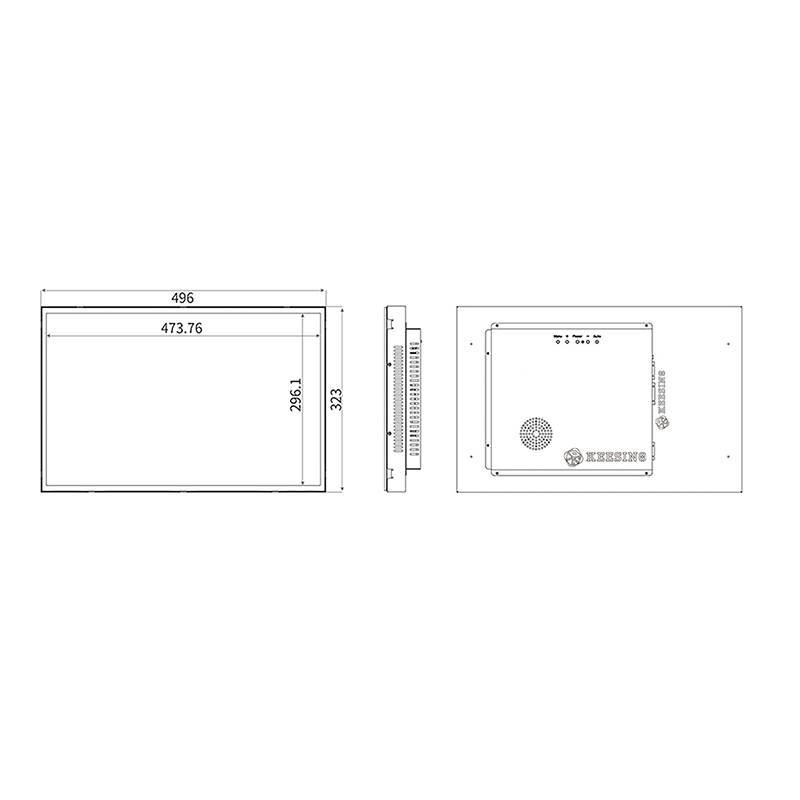

Product Dimension
Net Weight
Package Dimension
Gross Weight

 GM220 1 02
561mm x 326mm x 44mm
7.6kg
670mm x 170mm x 440mm
8.8kg

LCD Display:



Panel Size
Active Area
Number Of Pixels
Pixels Pitch
Display Colors
Scale Ratio
C/R
Brightness
Back-Light
Viewing Angle Range
22"
473.76mmx296.1mm
1680×1050
0.282mm
16.7M
16：10
1000：1
250cd/cm²
LED Lighting Bar Type
H：140-170DegV140-160Deg



Touch Screen:



Touch Technology
Touch Points
Touch Construction
Touch Sensor
Touch Cover
Interface
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
P-CAP
10Points（Max）
G+G
Glass T=1.8mm
USB-B Female RS232 DB9 Female
≥85%
Finger
2mm（Central）， 2. 5mm（Edge）
<10ms
windows xp/7 /8/10， Linux, Android, macOS
customize protocol for USB and RS232 interface
Supports Upgrade Firmware Via RS232 And USB Interface



Environmental:



Temperature


Humidity
Operating0°c~45℃
Storage：-20°C- 55°C
Operating：10%-80%RH, 40°C
Storage：10%-80%RH，40°C
Shipping & Returns

Row content
Compatibility

Row content

Our Products Show

Matching the prototype's size precisely, specifically designed for upgrading and replacing in slot machines.
