Keesino

Aristocrat Gen8 Helix+ 27"

$1,635.90

Monitor P/N: 171277-190

Monitor Model:KTK270DPA02

Keesino Model:GM270 1 01

Monitor P/N: 171277-290

Monitor Model:L27C5LTNAR

Keesino Model:GM270 1 21

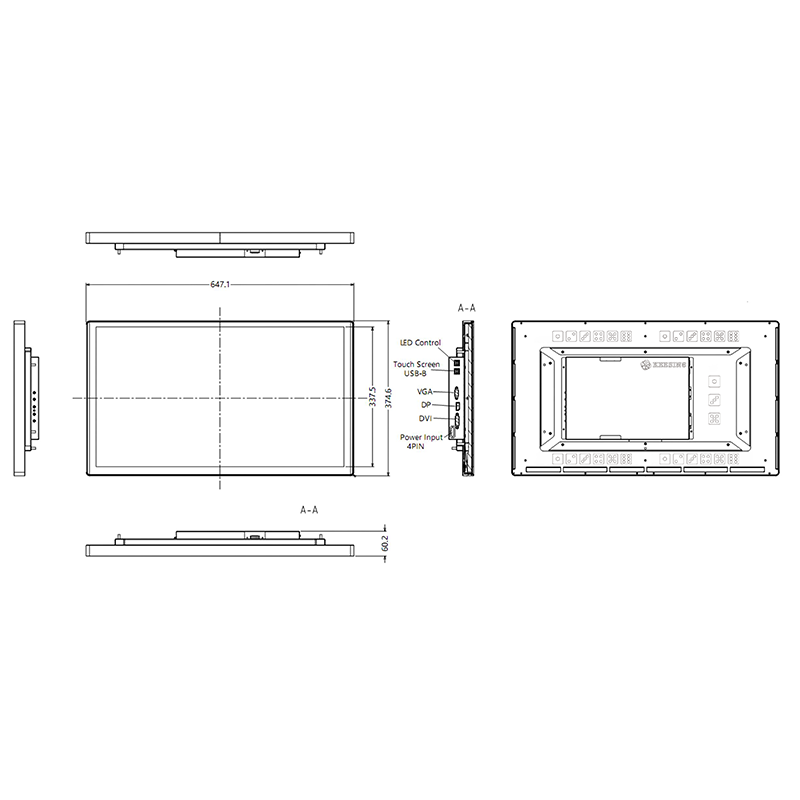

Mechanical:

Mechanical
Product Dimension
Net Weight
Package Dimension
Gross Weight
GM270 1 01 / GM270 1 21
647.1mm x 374.6mm x 60.2mm
9.5kg

730mm*150mm*480mm

11kg

LCD Display:



Panel Size
Active Area
Number Of Pixels
Pixels Pitch
Display Colors
Scale Ratio
C/R
Brightness
Back-Light
Viewing Angle Range
27"
597.6mmx336.15mm
1920*1080
0.31125mm
16.7M
16：9
3000：1
300cd/cm²
LED Lighting Bar Type
89/89/89/89



Touch Screen:



Touch Technology
Touch Points
Touch Construction
Touch Sensor
Touch Cover
Interface
Luminousness
Input Source
Touch Accuracy
Response Speed
Supports OS
Technical Service
Firmware Upgrade
P-CAP
10Points（Max）
G+G
Glass T=1.8mm
USB-B Female
≥85%
Finger
2mm（Central）， 2. 5mm（Edge）
<10ms
windows xp/7/8/10， Linux, Android, macOS
customize protocol for USB
Supports Upgrade Firmware Via USB Interface



LED Strips:



Number of led
LED Type
Interface
LED Colors
LED Control
Technical Service
Firmware Upgrade
20pcs（Left）+ 20pcs（Right）+ 26pcs（Bottom)
5050 RGB SMD
USB-B Female
16.7M Colors
Colors and Brightness can programer via USB interface
customize protocol for USB interface
Supports Upgrade Firmware Via USB Interface



Environmental:



Temperature


Humidity
Operating：0°C~45°C

Storage：-20°C-55°C

Operating：10%-80%RH, 40"C
Storage：10%-80%RH, 40°C
Shipping & Returns

Row content
Compatibility

Row content

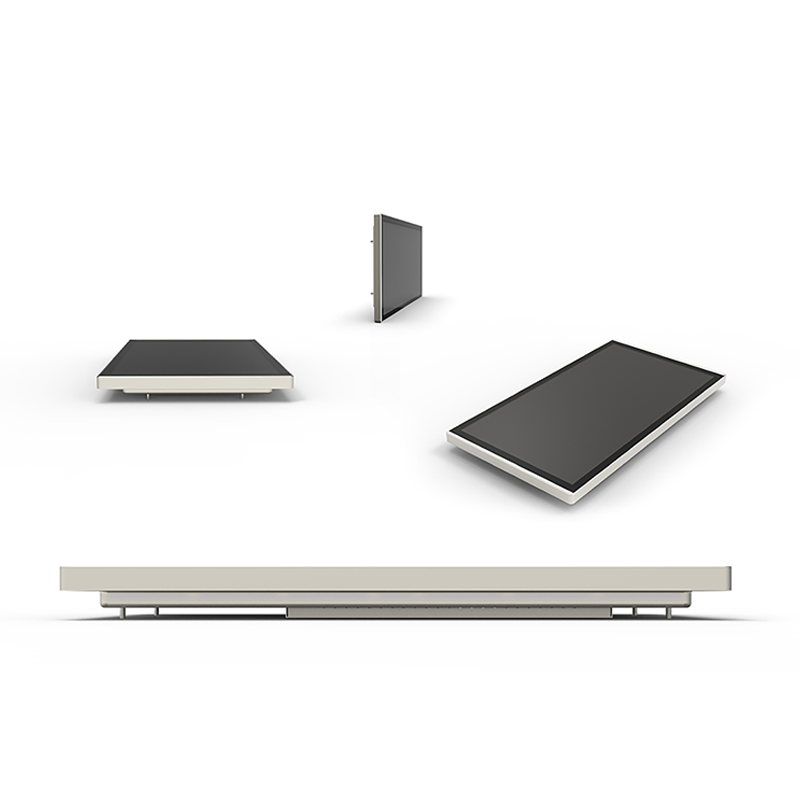

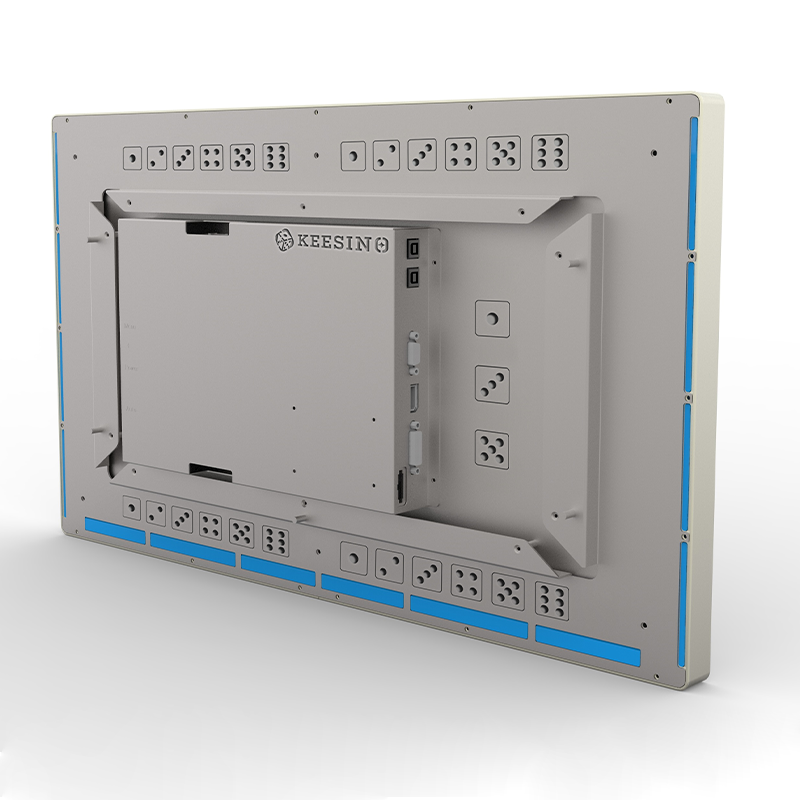

Our Products Show

Matching the prototype's size precisely, specifically designed for upgrading and replacing in slot machines.
